Description

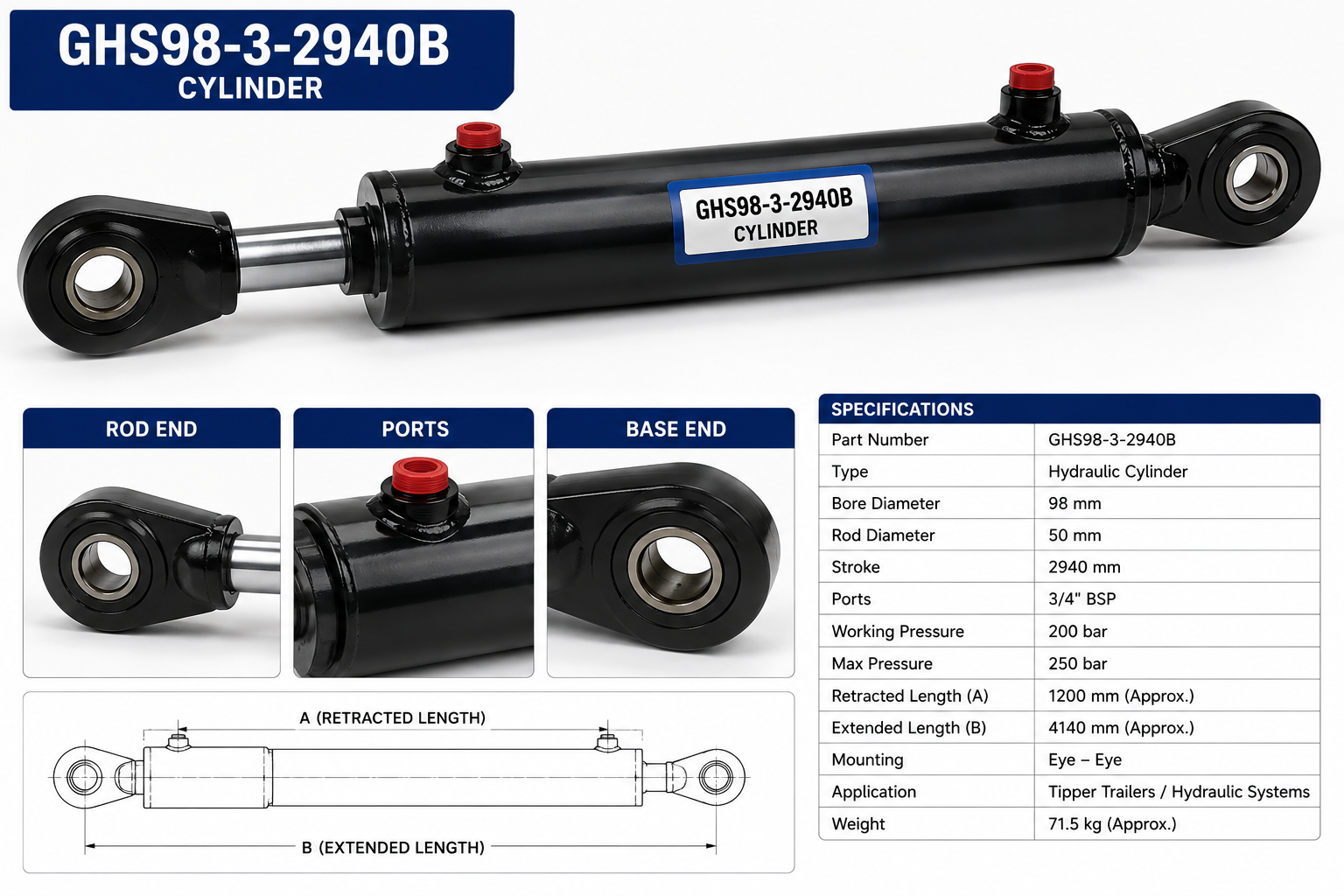

GHS98-3-2940B CYLINDER – Specifications
| Item | Specification |
|---|---|
| Part Number | GHS98-3-2940B |
| Product Name | Hydraulic Cylinder |
| Type | Double-Acting Hydraulic Cylinder |
| Bore Diameter | 98 mm |
| Stroke Length | 2940 mm |
| Rod Type | Hard Chrome Plated Piston Rod |
| Mounting Style | Eye-to-Eye Mounting |
| Rod End | Spherical Bearing Eye |
| Base End | Spherical Bearing Eye |
| Working Pressure | Up to 200 bar |
| Maximum Pressure | Up to 250 bar |
| Port Type | BSP Hydraulic Ports |
| Cylinder Body Material | High-Strength Seamless Steel |
| Rod Material | Hardened and Chrome-Plated Alloy Steel |
| Surface Finish | Corrosion-Resistant Black Coating |
| Operating Medium | Hydraulic Oil |
| Service Duty | Heavy Commercial and Industrial Applications |
Features
- Heavy-duty hydraulic cylinder construction
- Hard chrome-plated piston rod for extended wear resistance
- Eye-to-eye mounting configuration
- Precision-machined components for smooth operation
- High-pressure sealing system
- Corrosion-resistant protective coating
- Reliable performance under demanding operating conditions
Typical Applications
- Side tipper trailers
- Hydraulic tipping systems
- Construction equipment
- Agricultural machinery
- Industrial lifting equipment
- Material handling systems
- Heavy commercial vehicles
Package Includes
- 1 × GHS98-3-2940B Hydraulic Cylinder
- Protective port plugs
- Factory-applied anti-corrosion coating
- Product identification label
