Description

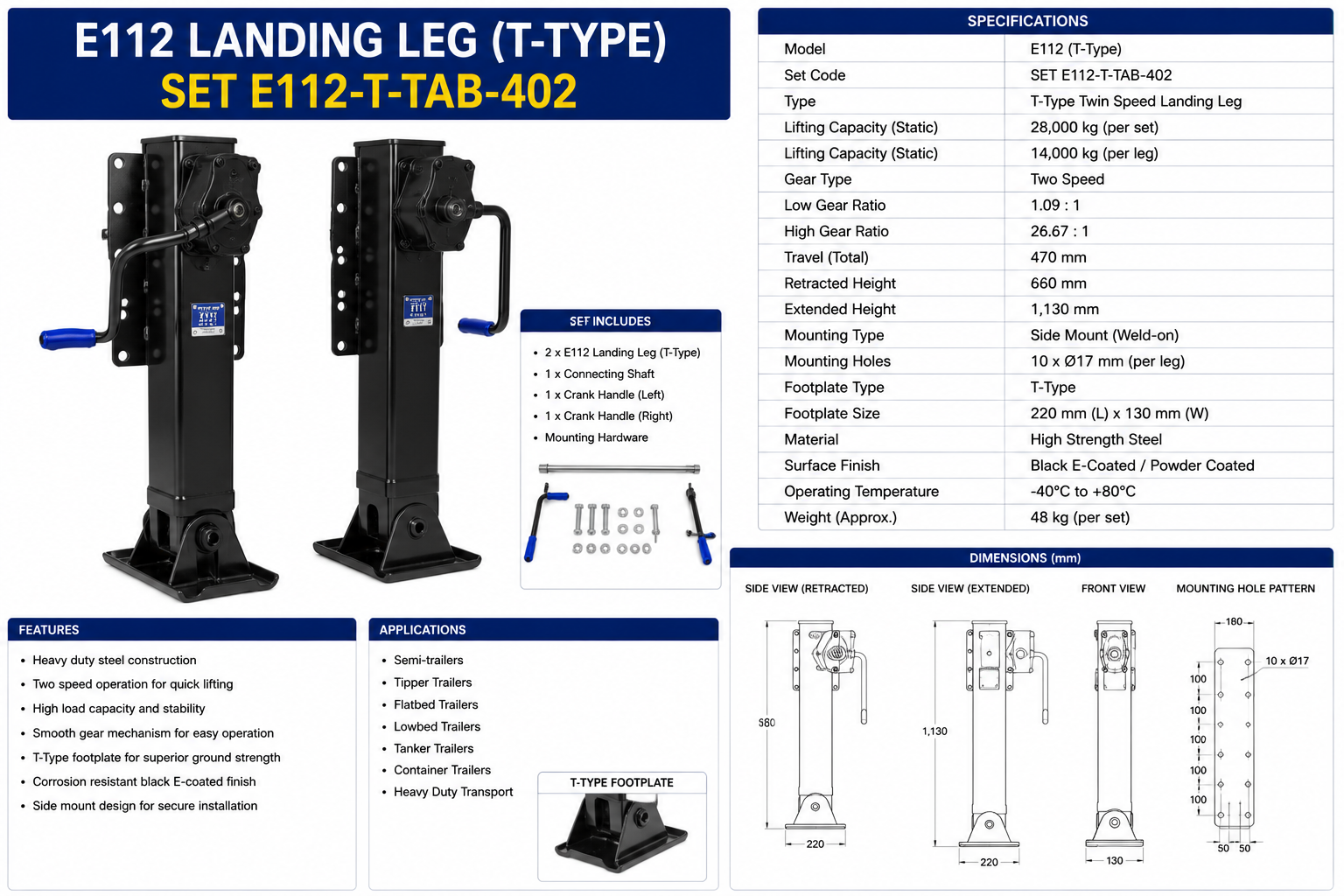

E112 LANDING LEG (T-TYPE) SET E112-T-TAB-402 – Specifications
| Item | Specification |
|---|---|
| Part Number | E112-T-TAB-402 |
| Product Name | E112 Landing Leg (T-Type) Set |
| Type | Two-Speed Trailer Landing Leg Set |
| Configuration | Complete Left and Right Leg Assembly |
| Foot Type | T-Type Footplate |
| Operation | Manual Crank Handle |
| Gear System | Two-Speed Gearbox |
| Static Load Capacity | Up to 28,000 kg per set |
| Lifting Capacity | Up to 24,000 kg per set |
| Travel Stroke | Approximately 430 mm |
| Mounting Type | Weld-On / Side Mount |
| Construction Material | High-Strength Structural Steel |
| Surface Finish | Black Powder-Coated / Corrosion-Resistant |
| Operating Temperature | -40°C to +80°C |
| Service Duty | Heavy Commercial Trailer Applications |
| Application | Semi-Trailers, Flatbeds, Tankers and Lowbeds |
Features
- Heavy-duty twin landing leg assembly
- Two-speed gearbox for fast and low-speed operation
- Robust T-type footplate for improved ground stability
- High-strength steel construction
- Corrosion-resistant powder-coated finish
- Smooth crank operation with reliable lifting performance
- Designed for long service life under demanding conditions
Typical Applications
- Semi-trailers
- Flatbed trailers
- Tipper trailers
- Tanker trailers
- Lowbed trailers
- Container trailers
- Heavy haulage and logistics equipment
Package Includes
- 1 × Left Landing Leg
- 1 × Right Landing Leg
- 1 × Connecting Shaft
- 1 × Crank Handle Assembly
- Mounting hardware (where applicable)
- Factory-applied anti-corrosion coating
