Description

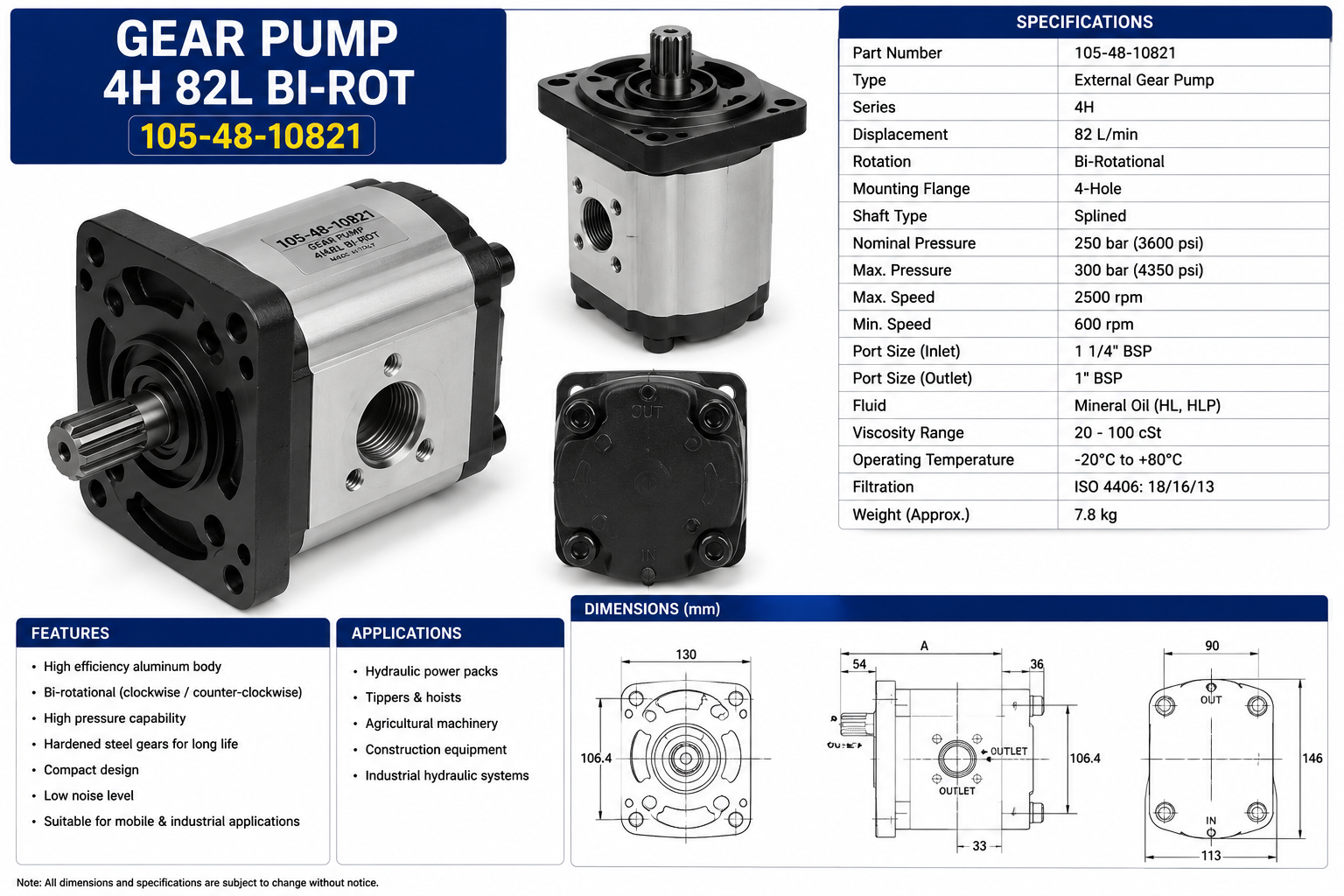

105-48-10821 GEAR PUMP 4H 82L BI-ROT – Specifications
| Item | Specification |
|---|---|
| Part Number | 105-48-10821 |
| Product Name | Gear Pump 4H 82L BI-ROT |
| Type | External Hydraulic Gear Pump |
| Series | 4H |
| Displacement | 82 L/min |
| Rotation | Bi-Rotational (Clockwise / Anti-Clockwise) |
| Mounting Type | 4-Hole Flange Mount |
| Drive Shaft | Splined Shaft |
| Housing Material | High-Strength Cast Iron and Aluminium Alloy |
| Operating Medium | Hydraulic Oil |
| Maximum Working Pressure | Up to 250 bar |
| Peak Pressure | Up to 300 bar |
| Maximum Speed | 2500 rpm |
| Minimum Speed | 600 rpm |
| Port Connections | BSP Hydraulic Ports |
| Surface Finish | Corrosion-Resistant Protective Coating |
| Service Duty | Continuous Heavy-Duty Operation |
| Application | Mobile and Industrial Hydraulic Systems |
Features
- High-efficiency external gear pump
- Bi-rotational operation (CW / ACW)
- Heavy-duty 4-hole flange mounting
- Splined drive shaft for secure power transmission
- High-pressure capability for demanding applications
- Precision-machined internal gears
- Corrosion-resistant construction
- Reliable, low-maintenance performance
Typical Applications
- Hydraulic power packs
- Tipper truck hydraulic systems
- Side tipper trailers
- Agricultural machinery
- Construction equipment
- Industrial hydraulic units
- Material handling equipment
- Mobile hydraulic applications
Package Includes
- 1 × 105-48-10821 Gear Pump 4H 82L BI-ROT
- Protective port covers
- Product identification plate
- Factory-applied anti-corrosion coating
