STUD KIT LJ06S/6,746
STUD KIT LJ06S/6,746 - Image 2

STUD KIT LJ06S/6,746

R2 000,00

The LJ06S/6.746 Stud Kit is used for mounting a PTO (Power Take-Off) unit to the Hino LJ06S 6-speed transmission with the 6.746 first-gear ratio.

Technical Specifications
Application: Hino LJ06S gearbox (6.746 ratio)
Transmission Type: 6-speed manual
PTO Mounting Position: Left side of gearbox
PTO Type Compatibility: Pneumatic side-mount PTO
Mounting Kit Spacer Requirement: 3.5 mm spacer with two 0.5 mm gaskets (for LJ06S/6.746 applications)
PTO Ratio: Approximately 1:1.102
Continuous Torque Capacity: Up to 250 Nm
Intermittent Torque Capacity: Up to 350 Nm
Power Capacity: Up to 27 kW (35 HP)
Pump Rotation: Anti-clockwise (depending on PTO model)

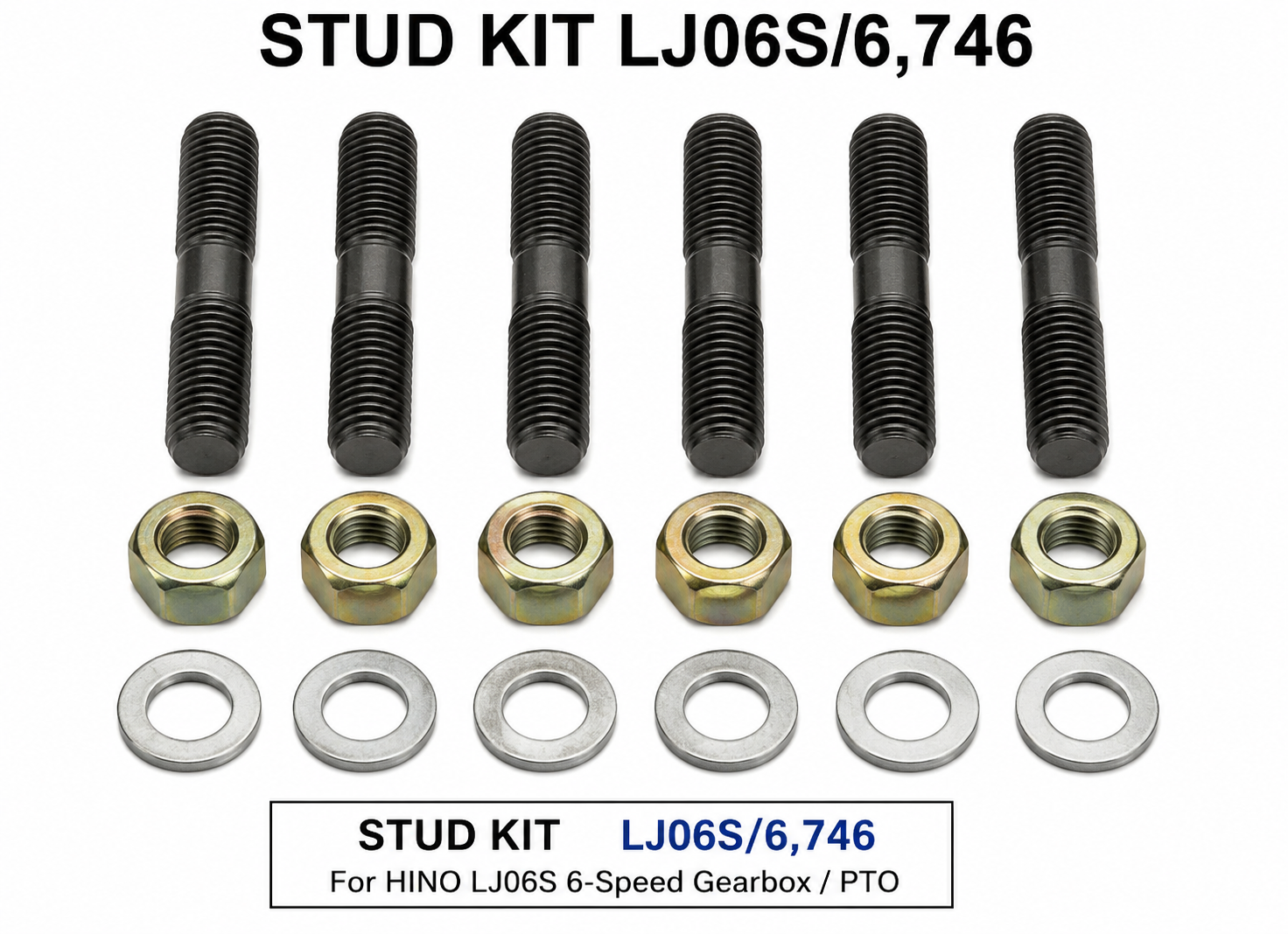

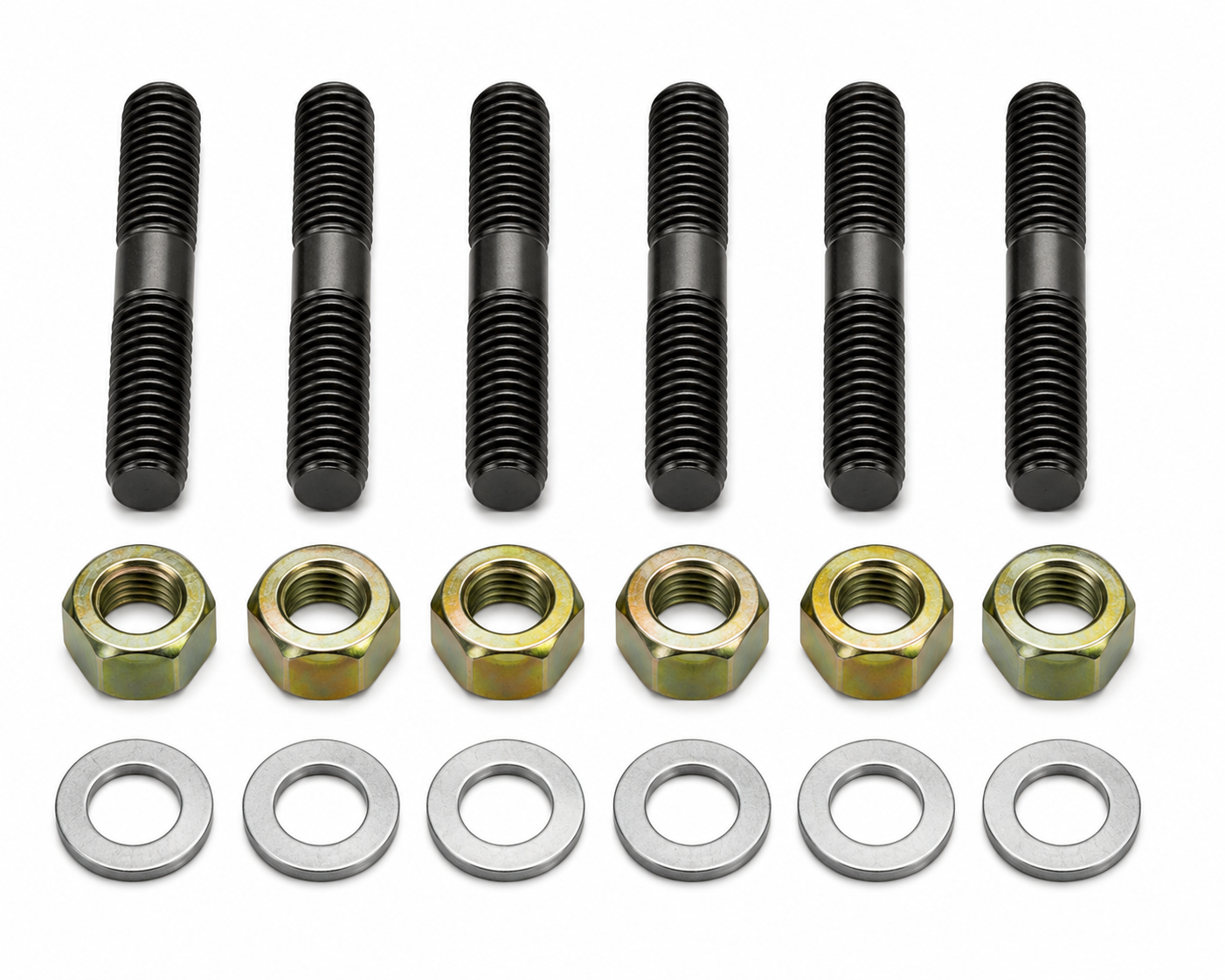

Typical Stud Kit Contents
6 × High-tensile mounting studs
6 × Hex nuts
6 × Flat washers
PTO mounting gasket(s) (supplier dependent)
Compatible Vehicles

Commonly used on various Hino 500 Series trucks equipped with the LJ06S transmission, including models such as FG1J, GD1J, FC9J and related variants.

Category:

Description

This refers to a Power Take-Off (PTO) unit engineered specifically for the Hino LJ06S 6-speed manual transmission, which features an \(8.189\) gear ratio.
Specifications for the LJ06S PTO include:
  • Mounting Style: Left-side mounted, air-shift operation for smooth engagement.
  • Output Type: Universal 3-bolt (UNI) output flange for flexible hydraulic integration.
  • Torque Rating: Maximum torque of \(250 Nm}
  • No: 154-000-488

The LJ06S gearbox itself is highly common in medium-duty Hino trucks (such as the Hino 500/GD 1226 series) and is rated for a total gross vehicle mass (GVM) of roughly \(12.5\) tons
