Description

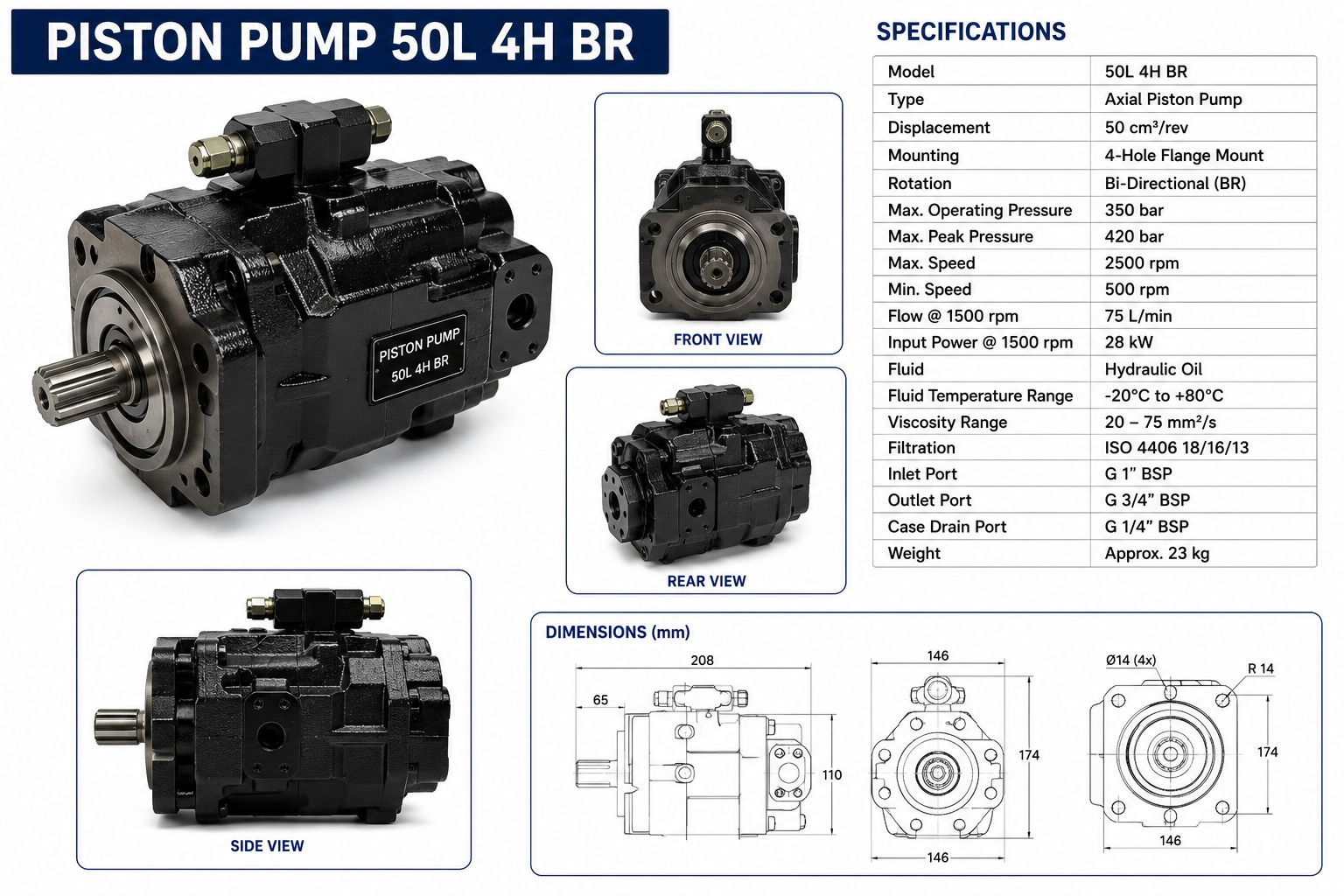

PISTON PUMP 50L 4H BR – Specifications
| Item | Specification |
|---|---|
| Product Name | Piston Pump 50L 4H BR |
| Type | Hydraulic Axial Piston Pump |
| Displacement | 50 cc/rev (50 L Series) |
| Rotation | Bi-Rotational (BR) |
| Mounting | 4-Hole Flange Mount |
| Drive Shaft | Splined Shaft |
| Operating Medium | Hydraulic Oil |
| Maximum Working Pressure | Up to 350 bar |
| Peak Pressure | Up to 420 bar |
| Maximum Speed | 2500 rpm |
| Minimum Speed | 500 rpm |
| Flow Rate | Dependent on operating speed |
| Housing Material | High-strength cast iron |
| Port Connections | Standard hydraulic ports |
| Finish | Corrosion-resistant black coating |
| Application | Heavy-duty hydraulic systems |
| Maintenance | Regular inspection of seals, shaft, and hydraulic connections |
Features
- High-efficiency axial piston design
- Heavy-duty cast iron construction
- Bi-directional rotation capability
- 4-hole flange mounting for secure installation
- Splined drive shaft for reliable power transmission
- Suitable for continuous industrial operation
- Low maintenance and long service life
Typical Applications
- Truck hydraulic systems
- Tipper trucks
- Construction equipment
- Agricultural machinery
- Industrial hydraulic power units
- Heavy commercial vehicles
Package Includes
- 1 × Piston Pump 50L 4H BR
- Protective port covers
- Mounting flange
- Product identification plate
Note: Ensure compatibility with the hydraulic system’s pressure, flow, and mounting requirements before installation. Use clean hydraulic oil and follow the manufacturer’s recommended maintenance schedule.
