Description

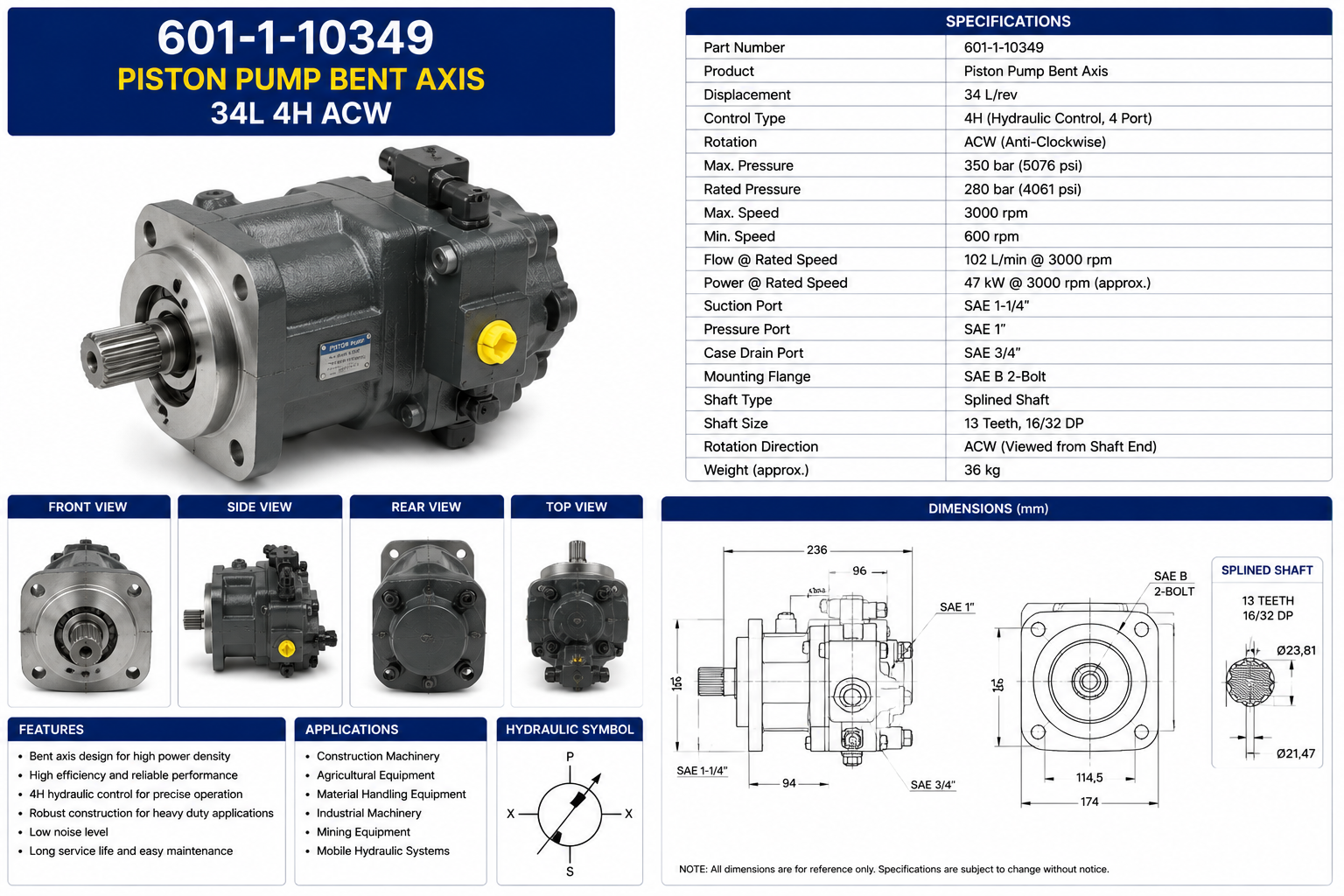

601-1-10349 PISTON PUMP BENT AXIS 34L 4H ACW – Specifications
| Item | Specification |
|---|---|
| Part Number | 601-1-10349 |
| Product Name | Piston Pump Bent Axis 34L 4H ACW |
| Type | Bent Axis Hydraulic Piston Pump |
| Displacement | 34 L/rev |
| Control Type | 4H Hydraulic Control |
| Rotation | ACW (Anti-Clockwise) |
| Pump Design | Axial Bent Axis |
| Mounting Type | 4-Hole Flange Mount |
| Drive Shaft | Splined Shaft |
| Housing Material | High-Strength Cast Iron |
| Operating Medium | Hydraulic Oil |
| Maximum Working Pressure | Up to 350 bar |
| Continuous Operating Pressure | Up to 280 bar |
| Maximum Speed | 3000 rpm |
| Minimum Speed | 600 rpm |
| Port Connections | SAE / BSP Hydraulic Ports |
| Surface Finish | Corrosion-Resistant Protective Coating |
| Service Duty | Continuous Heavy-Duty Operation |
| Application | Mobile and Industrial Hydraulic Systems |
Features
- High-efficiency bent axis piston pump design
- Anti-clockwise (ACW) rotation
- Heavy-duty 4-hole flange mounting
- Precision splined drive shaft
- High-pressure performance for demanding applications
- Smooth and reliable hydraulic operation
- Robust cast iron construction
- Long service life with low maintenance requirements
Typical Applications
- Hydraulic power packs
- Tipper truck hydraulic systems
- Side tipper trailers
- Construction machinery
- Agricultural equipment
- Material handling equipment
- Industrial hydraulic units
- Mobile hydraulic applications
Package Includes
- 1 × 601-1-10349 Piston Pump Bent Axis 34L 4H ACW
- Protective port covers
- Product identification plate
- Factory-applied anti-corrosion coating
